2 Function Joystick (Ball Stick)
*Price sourced from Amazon.com. Last updated 2026-04-25. Price and availability subject to change.

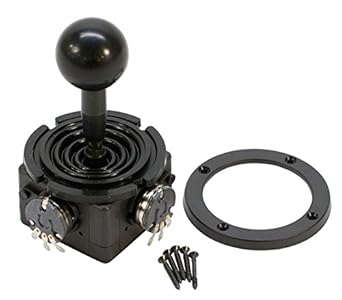

The joystick module styles range from a simple 2-function joystick to a compact 4 function joystick. The X and Y and optional Z axis offer 50 degrees of total movement; optional fourth axis is a momentary button. Each axis has a 5K potentiometer. Joysticks are spring centered with rubber dust seals and a mounting ring with hardware.
Key Features
- Resistance Value: 5K / Resistance Tolerance: +/-20% / Independent Linearity: +/-1%
- Resolution: Essentially Infinite / Temperature Coefficient Resistance): +/-400 ppm/ C° / Output Smoothness: 0.5% Maximum
- X/Y Axis Electricity Corner: +/-25° / Z Axis Electricity Corner: N/A / Insulation Resistance: 50M @ 500VDC 60 sec.
- Restoration Error Rate: +/- 0.03K / Prolepsis Mechanical Life-cycle: 500,000 cycles / Operating Temperature Range: -10° to 80° C
- Operate Torque: 90gf (X), 250gf (Y)
Full Specifications
| Brand | ServoCity |
|---|---|
| Color | Black |
| Model Name | 605610 |
| Resolution | Essentially Infinite / Temperature Coefficient Resistance): +/-400 ppm/ C° / Output Smoothness: 0.5% Maximum |
| Power Source | Corded Electric |
| Operate Torque | 90gf (X), 250gf (Y) |
| Controller Type | Joystick |
| Resistance Value | 5K / Resistance Tolerance: +/-20% / Independent Linearity: +/-1% |
| Hardware Platform | pc |
| Compatible Devices | PC |
| Additional Features | Ergonomic, Motion Sensor |
| Restoration Error Rate | +/- 0.03K / Prolepsis Mechanical Life-cycle: 500,000 cycles / Operating Temperature Range: -10° to 80° C |
| Connectivity Technology | USB |
| Manufacturer Part Number | 605614 |
